The Liftolet is a stand-up aid for people with disabilities that supports them in their daily walk to the toilet. The particular aim is to preserve the dignity and independence of the user. Through these aspects, the physical and psychological well-being of the user is strengthened, which enables a longer period of care in one’s own home. The Liftolet is an adequate solution especially for users who cannot go to the toilet independently due to special illnesses.

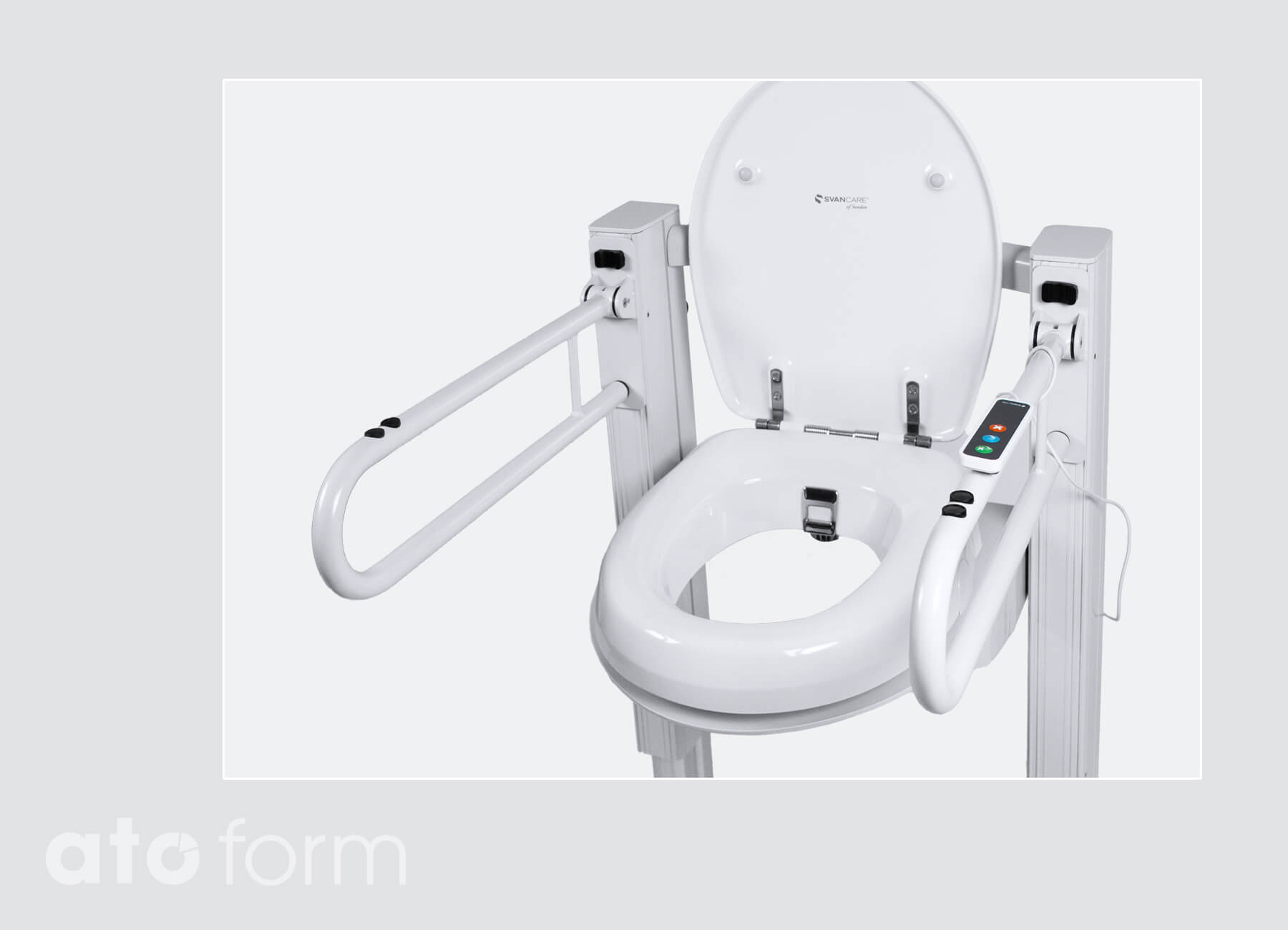

The user is gently and steplessly brought into a sitting or standing position by the Liftolet, at the push of a button. The folding support handles can be folded back for easy access.
In the care sector, the lift provides great relief for the nursing staff when caring for the patient and the necessary support for the patient when going to the toilet is difficult.
The aid can be installed over all common toilets without tools and does not restrict the normal user. The height of the toilet seat can be easily adjusted via the support handles at the push of a button. The support handles can be folded up. The toilet seat lift can also be retrofitted. A floor plate (optional accessory) can be fitted for places where there are problems with floor fixing or for mobile use.
The lift height is 40 cm from the normal seat height. The support handles can be folded up and contain the operating function for the lifting process.

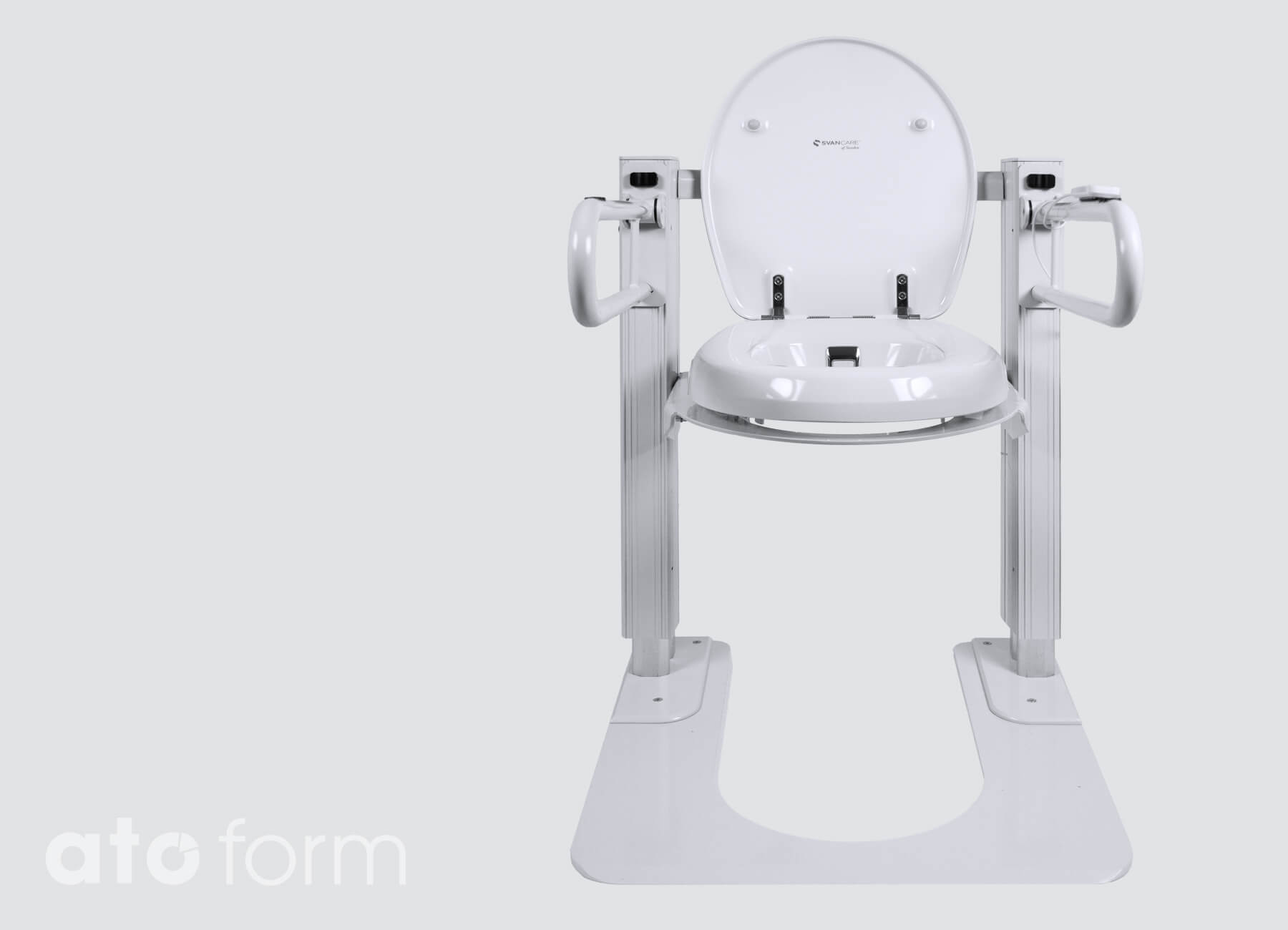

Liftolet with base plate (accessory) and optional available Pressalit® arm supports

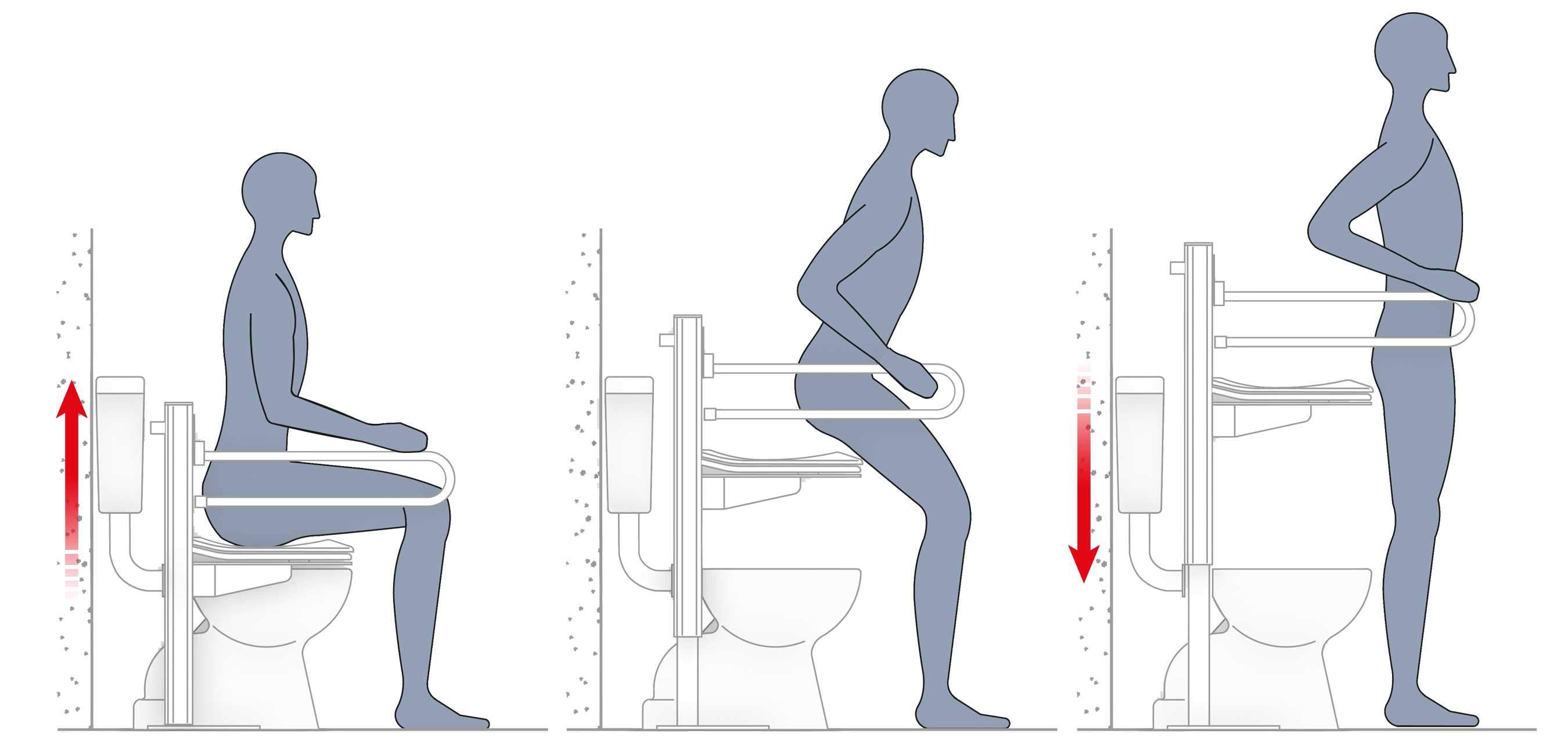

Sitting down and standing up made easier, also for heavier persons.
Features
Scope of delivery
- Upward folding support arms, with operation buttons on both sides
- Shapely, anatomically shaped seat with cover
- Floor fixing
Accessories
- Base plate for mobile use and even places with floor fixing problems
- Support arms Pressalit®
- Toilet paper holder for support arms Pressalit®
In all model variations the support handles can be folded up for easy access. The seat height is individually adjusted to the height of the toilet bowl. The lifting height is 40.0 cm.
Liftolet narrow model variant (LT-1000-S) with standard arm supports and base plate (accessory)
Liftolet narrow model variant (LT-1000-S) with standard arm supports and base plate (accessory)
Functionality
Two buttons are situated in the support arms, for raising and lowering the toilet seat together with the support arms.
Sit down:
To sit down, firstly raise the toilet seat until one can comfortably sit down from a standing position onto the edge of the toilet seat. At the touch of a button, the seat and armrests are then simultaneously lowered to the standard toilet seat height. Thereby the user is lowered to his/hers normal seating position.
Stand up:
It is just as comfortable to stand up as it is to sit down. At the touch of a button, the seat and support arms are lifted upwards until the user is straightened up again.
Intimate care:
Liftolet is optionally available with an opening at the front of the seat, which allows intimate care in a practical manner. For this the seat should be slightly raised.
Cleaning:
The electrical equipment is spray water protected.
Toilet paper holder for Pressalit® arm supports
Technical details
| Liftolet | Standard | Narrow | |
|---|---|---|---|
| Article number | LT-1000 | LT-1000-S | |
| Product length (Base plate) | cm | 62.0 | 62.0 |
| Product height | cm | 79.0 to 119.0 | 79.0 to 119.0 |
| Overall width (Base plate) | cm | 80.5 | 59.6 |
| Seat width | cm | 44.6 | 44.6 |
| Seat depth | cm | 47.0 | 47.0 |
| Seat height (Default settings) | cm | 44.0 | 44.0 |
| Width between the support arms | cm | 59.5 | 49.6 |
| Support arms height | cm | 71.0 | 72.0 |
| Lifting height support plate | cm | 40.0 | 40.0 |
| Lifting speed | mm/s | 6.2 | 7.4 |
| Electric drive | 28V | 24V | |
| Protection class (splash water protection) | IP54 | IP65 | |
| Product weight | kg | 75.0 | 40.0 |
| Maximum capacity | kg | 150.0 | 150.0 |
| For battery powered model | |||
| Protection class | IPX5 | ||
